This MotoHawk™ block is used to enable or disable open load diagnostics while the selected output is asserted.
Open Load Detection
MotoHawk_lib/Module Configuration Blocks
Some output drivers have the capability to detect an open circuit condition even while the drive is asserted.
However there is often requirements on the load that must be met before the diagnostic will operate reliably. This block allows the application to define whether this diagnostic should be
used. The resource list will only be populated with outputs that support this configuration

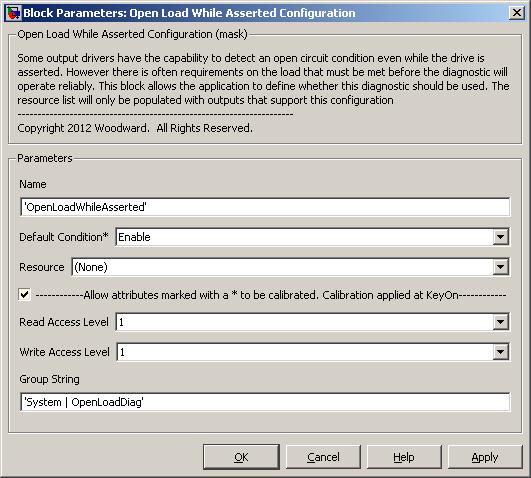

| Parameter Field | Values | Comments/Description |
| Name | Alpha-numeric text, single-quote enclosed | Provide the block name for reference. No special characters, such as spaces, dashes, commas (underscore allowed). |
| Default Condition* | Drop down | Open load diagnostic setting applied to Resource (Disable means that open load diagnostics while Resource is asserted are disabled). |
| Resource | Listed Pin designations per target module | Assign the associated module output pin. |
| Allow attributes marked with a * to be calibrated. Calibration applied at KeyOn | Check box (enable) | Name, Access Levels and Group Strings fields available. |
| Read Access Level | 1-4 | Sets security lever 1 lowest, 4 highest, for user access to read value. |
| Write Access Level | 1-4 | Sets security lever 1 lowest, 4 highest, for user access to write value. |
| Group String | Alpha-numeric text | Determines folder name and hierarchy as displayed. Use "|" character between folder names to delineate subfolder structure. |
