Two tables are shown below, the Module cross reference
and the Part number cross reference.
The latter table allows column sorting by clicking on the column heading.
You can also use your browser's find text feature to seach the page.
The MotoHawk target is selected using the Target Definition block
| MotoHawk Target | Manufacturer | Aliases (x = deprecated) | ||
|---|---|---|---|---|
| MCSName | PartNumber | Labelled | ||
1751-6456 1751-6457 |
Visteon | GCM55541121001F00 |
1751-6456 |
CCM1001 PROD |
| GCM55541121001CP0 |
1751-6457 |
CCM1001 DEV |
||
ECM-0563-048-0704 |
Continental | ECM05630480704CP2 |
1751-6527 |
ECM48-0704 CTRLECM031xx |
| ECM05630480704F00 |
1751-6410 |
ECM48-0704 CTRLECM031xx |
||
ECM-0563-048-0705 |
Continental | ECM05630480705CP0 |
1751-6511 |
ECM48-0705 |
| ECM05630480705F00 |
1751-6068 |
ECM48-0705 |
||
ECM-0563-048-0806 |
Continental | ECM05630480806CP0 |
1751-6514 |
ECM48-0806 |
| ECM05630480806F00 |
1751-6417 x |
ECM48-0806 |
||
ECM-0S12-024-0502 |
Continental | ECM0S120240502F00 |
1751-6370 |
SECM0502 CTRLSECM00202 |
| ECM0S120240502CP0 |
1751-6367 |
SECMDEV0502 |
||
| ECM0S120240802F00 |
1751-6428 |
SECM0802 |
||
| ECM0S120240802CP0 |
1751-6507 |
SECMDEV0802 |
||
| ECM-0S12-024-0503 |
Continental | ECM0S120240503Fxx |
1751-6375 x |
CTRLSECM00601 SECM0503 |
| ECM0S120240503Fxx |
1751-6377 x |
CTRLSECM008D0 SECM0503 |
||
| ECM0S120240503CPx |
1751-6373 x |
CTRLSECM005AD1 SECMDEV0503 |
||
| ECM0S120240503CPx |
1751-6376 x |
CTRLSECM007AD0 W/RTV |
||
| ECM0S120240503CPx |
1751-6422 x |
SECMDEV0503 CTRLSECM00601 |
||
| ECM0S120240703CP0 |
1751-6423 |
SECMDEV0703 |
||
| ECM0S120240703F00 |
1751-6424 |
SECM0703 W/V2.2 HB |
||
| ECM0S120240801CP0 |
1751-6536 |
SECMDEV0801 |
||
| ECM0S120240801F00 |
1751-6426 |
SECM0801 |
||
| ECM0S120240803CP0 |
1751-6535 |
SECMDEV0803 |
||
| ECM0S120240803F00 |
1751-6430 |
SECM0803 |
||
| ECM-0S12-024-0804 |
Continental | ECM0S120240804CP0 |
1751-6534 |
SECMDEV0804 |
| ECM0S120240804F00 |
1751-6432 |
SECM0804 |
||
| ECM-5554-112-0902-KD |
Visteon | |||
| ECM-5554-112-0902-KP |
Visteon | |||
| ECM-5554-112-0902-xD |
Visteon | |||
| ECM-5554-112-0902-xP |
Visteon | ECM55541120902F00 |
1751-6302 |
PCM0902 ECM-5554-112-0902 |
| ECM55541120902CP0 |
1751-6435 x |
PCM0902 ECM-5554-112-0902 |
||
| ECM-5554-112-0904-xD |
Visteon | ECM55541120904F00 |
1751-6454 |
8M2100904 PCM0904 |
| ECM55541120904CP0 |
1751-6455 |
PCMDEV0904 |
||
ECM-5634M-070-061-1402 |
Woodward | SECM70-MI(DEV) |
1751-6649 |
|
| SECM70-MI(PROD) |
1751-6680 |
|||
| ECM-5634M-070-061-1403 |
Woodward | SECM70-PG(DEV) |
1751-6650 |
|
| SECM70-PG(PROD) |
1751-6681 |
|||
| ECM-5634M-070-061-1409 |
Woodward | SECM70-SK(DEV) |
1751-6653 |
|
| SECM70-SK(PROD) |
1751-6682 |
|||
| ECM-5634M-070-061-1411 |
Woodward | SECM70-OH(DEV) |
1751-6675 |
|
| SECM70-OH(PROD) |
1751-6683 |
|||
| ECM-5634M-070-061-1452 |
Woodward | SECM70-MI(PROD) |
1751-6680 |
|
| ECM-5634M-070-061-1453 |
Woodward | SECM70-PG(PROD) |
1751-6681 |
|
| ECM-5634M-070-061-1459 |
Woodward | SECM70-SK(PROD) |
1751-6682 |
|
| ECM-5634M-070-061-1461 |
Woodward | SECM70-OH(PROD) |
1751-6683 |
|
ECM-5642A-112-049-1200 |
Visteon | ECM-OH |
1751-6605 |
TBD |
ECM-5644A-112-048-1204 |
Visteon | ECM-OH |
1751-6601 |
VPCWGF-12A650-BA1 |
ECM-5644A-112-064-1400 |
Woodward Inc. | ECM-5644A-112-064-1400 |
TBD |
Mercury ECM112-14 DV |
ECM-S12G-112-059-1200 |
Visteon | ECM-OH DV3 Quizzer |
1751-6601 1751-6602 1751-6603 1751-6604 |
VPCWGF-12A650-AA1 |
ECM-S12X-070-1001 |
Continental | ECM701001 |
1751-6458 |
ECM701001 PV PROD |
| ECM70D1001 |
1751-6466 |
ECM70D1001 PV DEV |
||
| Bedrock DPF |
1751-6503 |
Bedrock DPF 256K |
||
| Bedrock DPF |
1751-6498 |
Bedrock DPF 1Mb |
||
| Bedrock DPF |
1751-6544 |
Bedrock DPF W/3 RTD 1Mb |
||
| ECM-S12X-070-1002 |
Continental | |||
ECU555-48-0403 |
Continental | ECM05550480403F00 |
1751-6383 x |
ECM0403 W/02 |
| ECM05550480403CP0 |
1751-6382 x |
ECMDEV0403 W/02 |
||
ECU555-48-0707 |
Continental | ECM05550480707F00 |
1751-6389 |
ECM0707 PROD MC-3.0L |
| ECM05550480707CP0 |
1751-6505 |
ECMDEV0707 MC-3.0L |
||
ECU555-48-0708 |
Continental | ECM05550480708F00 |
1751-6391 |
ECM0708 PROD MC-SB |
| ECM05550480708CP0 |
1751-6531 |
ECMDEV0708 MC-SB |
||
ECU555-48-0710 |
Continental | ECM05550480710F00 |
1751-6393 |
ECM0710 PROD MOTO |
| ECM05550480710CP0 |
1751-6513 |
ECMDEV0710 MOTO |
||
ECU555-80 |
Continental | ECM05550800701F00 |
1751-6396 |
ECU555-80 |
| ECM05550800702CP0 |
1751-6532 |
ECU555-80 |
||
| ECM05550800702F00 |
1751-6398 |
ECU555-80 |
||
| ECM05550800703CP0 |
1751-6510 |
ECU555-80 |
||
| ECM05550800801F00 |
1751-6401 |
ECU555-80 |
||
| ECM05550800802F00 |
1751-6403 |
ECU555-80 |
||
| ECM05550800803F00 |
1751-6405 |
ECU555-80 |
||
| ECU563-48-0701 |
Continental | ECM05630480701CP1 |
1751-6533 |
ECM48-0701 CTRLECM025xx |
| ECM05630480701F00 |
1751-6407 |
ECM48-0701 CTRLECM025xx |
||
ECU565-128 |
Continental | ECM0565128H701F00 P128H0705 |
8237-1237 |
PCM128 HiVol P128H0705 |
| ECM0565128L701C00 PCM128L702 PCM128L0705 |
8237-1238 |
PCM128 LoVol PCM128L702 P128L0705 |
||
| ECM0565128L0704C00 |
8237-1448 |
PCM128 LoVol P128L0704 |
||
| ECM0565128H1001F00 |
8237-1364 |
PCM128 HiVol P128H1001 |
||
| ECM0565128L1001C00 |
8237-1363 |
PCM128 LoVol P128L1001 |
||
GCM-0563-048-0801 |
Continental | GCM05630480801CP0 |
1751-6508 |
CCM48 GCM48DEV0801 |
| GCM05630480801F00 |
1751-6326 |
CCM48 GCM480801 |
||
GCM-0563-048-0802 |
Continental | GCM05630480802F00 |
1751-6332 |
SIM48 GCM480802 |
| GCM05630480802CP0 |
1751-6509 |
SIM48DEV GCM48DEV0802 |
||
| GCM-0S12-024-0401-F |
Continental | CTRLMSIM00100 |
1751-6289 |
MSIM0401 |
| CTRLSMM00100 |
1751-6379 |
SMUX0401 |
||
| GCM0S120240401F00 |
1751-6338 |
MCHI0401 CTRLCHI00202 |
||
| GCM0S120240402F00 |
1751-6340 x |
GCM-0S12-024 MSIM0401 CTRLMSIM00100 |
||
| GCM0S120240402F30 |
1751-6342 |
MSIM0401 |
||
| GCM0S120240402F31 |
1751-6344 |
MSIM0401 |
||
| GCM0S120240403F00 |
1751-6346 |
GCM-0S12-024 CTRLSMM00100 |
||
| GCM0S120240403F10 |
1751-6348 |
SMUX CMD STATION |
||
GCM-5634M-070-061-1405 |
Woodward | ATCM70(DEV) |
1751-6652 |
|
| ATCM70(PROD) |
1751-6684 |
|||
| GCM-5634M-070-061-1455 |
Woodward | ATCM70(PROD) |
1751-6684 |
|
GCM-S12X-064-053-1100 |
Kongsberg | |||
HCM-0563-048-0801 |
Continental | HCM05630480801CP0 |
1751-6506 |
HCM48DEV0801 TVM48 |
| HCM05630480801F00 |
1751-6354 |
HCM48801 TVM48 |
||

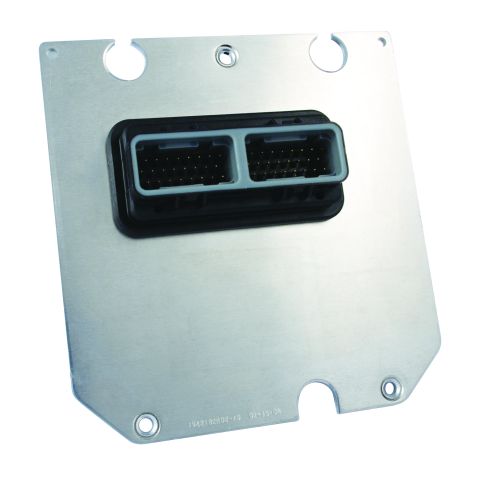

HCM563-48-0802 |
Continental | HCM05630480802CP0 |
1751-6528 |
HCM-0563-0802 HCM48DEV0802 |
| HCM05630480802F00 |
1751-6358 |
HCM-0563-0802 HCM480802 |
||
HCM563-48-0803 |
Continental | HCM05630480803CP0 |
1751-6529 |
HCM-0563-0803 HCM48DEV0803 |
| HCM05630480803F00 |
1751-6361 |
HCM-0563-0803 HCM480803 |
||
(x = inactive/deprecated number)
| Part Number | Manufacturer | MotoHawk Target | MCSName | Labelled |
|---|---|---|---|---|
| 1751-6527 | Continental | ECM-0563-048-0704 | ECM05630480704CP2 |
ECM48-0704 CTRLECM031xx |
| 1751-6410 | Continental | ECM-0563-048-0704 | ECM05630480704F00 |
ECM48-0704 CTRLECM031xx |
| 1751-6511 | Continental | ECM-0563-048-0705 | ECM05630480705CP0 |
ECM48-0705 |
| 1751-6068 | Continental | ECM-0563-048-0705 | ECM05630480705F00 |
ECM48-0705 |
| 1751-6514 | Continental | ECM-0563-048-0806 | ECM05630480806CP0 |
ECM48-0806 |
| 1751-6417 x | Continental | ECM-0563-048-0806 | ECM05630480806F00 |
ECM48-0806 |
| 1751-6383 x | Continental | ECU555-48-0403 | ECM05550480403F00 |
ECM0403 W/02 |
| 1751-6382 x | Continental | ECU555-48-0403 | ECM05550480403CP0 |
ECMDEV0403 W/02 |
| 1751-6389 | Continental | ECU555-48-0707 | ECM05550480707F00 |
ECM0707 PROD MC-3.0L |
| 1751-6505 | Continental | ECU555-48-0707 | ECM05550480707CP0 |
ECMDEV0707 MC-3.0L |
| 1751-6391 | Continental | ECU555-48-0708 | ECM05550480708F00 |
ECM0708 PROD MC-SB |
| 1751-6531 | Continental | ECU555-48-0708 | ECM05550480708CP0 |
ECMDEV0708 MC-SB |
| 1751-6393 | Continental | ECU555-48-0710 | ECM05550480710F00 |
ECM0710 PROD MOTO |
| 1751-6513 | Continental | ECU555-48-0710 | ECM05550480710CP0 |
ECMDEV0710 MOTO |
| 1751-6396 | Continental | ECU555-80 | ECM05550800701F00 |
ECU555-80 |
| 1751-6532 | Continental | ECU555-80 | ECM05550800702CP0 |
ECU555-80 |
| 1751-6398 | Continental | ECU555-80 | ECM05550800702F00 |
ECU555-80 |
| 1751-6510 | Continental | ECU555-80 | ECM05550800703CP0 |
ECU555-80 |
| 1751-6401 | Continental | ECU555-80 | ECM05550800801F00 |
ECU555-80 |
| 1751-6403 | Continental | ECU555-80 | ECM05550800802F00 |
ECU555-80 |
| 1751-6405 | Continental | ECU555-80 | ECM05550800803F00 |
ECU555-80 |
| 1751-6533 | Continental | ECU563-48-0701 | ECM05630480701CP1 |
ECM48-0701 CTRLECM025xx |
| 1751-6407 | Continental | ECU563-48-0701 | ECM05630480701F00 |
ECM48-0701 CTRLECM025xx |
| 8237-1237 | Continental | ECU565-128 | ECM0565128H701F00 P128H0705 |
PCM128 HiVol P128H0705 |
| 8237-1238 | Continental | ECU565-128 | ECM0565128L701C00 PCM128L702 PCM128L0705 |
PCM128 LoVol PCM128L702 P128L0705 |
| 8237-1448 | Continental | ECU565-128 | ECM0565128L0704C00 |
PCM128 LoVol P128L0704 |
| 8237-1364 | Continental | ECU565-128 | ECM0565128H1001F00 |
PCM128 HiVol P128H1001 |
| 8237-1363 | Continental | ECU565-128 | ECM0565128L1001C00 |
PCM128 LoVol P128L1001 |
| 1751-6508 | Continental | GCM-0563-048-0801 | GCM05630480801CP0 |
CCM48 GCM48DEV0801 |
| 1751-6326 | Continental | GCM-0563-048-0801 | GCM05630480801F00 |
CCM48 GCM480801 |
| 1751-6332 | Continental | GCM-0563-048-0802 | GCM05630480802F00 |
SIM48 GCM480802 |
| 1751-6509 | Continental | GCM-0563-048-0802 | GCM05630480802CP0 |
SIM48DEV GCM48DEV0802 |
| 1751-6506 | Continental | HCM-0563-048-0801 | HCM05630480801CP0 |
HCM48DEV0801 TVM48 |
| 1751-6354 | Continental | HCM-0563-048-0801 | HCM05630480801F00 |
HCM48801 TVM48 |
| 1751-6528 | Continental | HCM563-48-0802 | HCM05630480802CP0 |
HCM-0563-0802 HCM48DEV0802 |
| 1751-6358 | Continental | HCM563-48-0802 | HCM05630480802F00 |
HCM-0563-0802 HCM480802 |
| 1751-6529 | Continental | HCM563-48-0803 | HCM05630480803CP0 |
HCM-0563-0803 HCM48DEV0803 |
| 1751-6361 | Continental | HCM563-48-0803 | HCM05630480803F00 |
HCM-0563-0803 HCM480803 |
| 1751-6456 | Visteon | 1751-6456 1751-6457 | GCM55541121001F00 |
CCM1001 PROD |
| 1751-6457 | Visteon | 1751-6456 1751-6457 | GCM55541121001CP0 |
CCM1001 DEV |
| 1751-6370 | Continental | ECM-0S12-024-0502 | ECM0S120240502F00 |
SECM0502 CTRLSECM00202 |
| 1751-6367 | Continental | ECM-0S12-024-0502 | ECM0S120240502CP0 |
SECMDEV0502 |
| 1751-6428 | Continental | ECM-0S12-024-0502 | ECM0S120240802F00 |
SECM0802 |
| 1751-6507 | Continental | ECM-0S12-024-0502 | ECM0S120240802CP0 |
SECMDEV0802 |
| 1751-6375 x | Continental | ECM-0S12-024-0503 | ECM0S120240503Fxx |
CTRLSECM00601 SECM0503 |
| 1751-6377 x | Continental | ECM-0S12-024-0503 | ECM0S120240503Fxx |
CTRLSECM008D0 SECM0503 |
| 1751-6373 x | Continental | ECM-0S12-024-0503 | ECM0S120240503CPx |
CTRLSECM005AD1 SECMDEV0503 |
| 1751-6376 x | Continental | ECM-0S12-024-0503 | ECM0S120240503CPx |
CTRLSECM007AD0 W/RTV |
| 1751-6422 x | Continental | ECM-0S12-024-0503 | ECM0S120240503CPx |
SECMDEV0503 CTRLSECM00601 |
| 1751-6423 | Continental | ECM-0S12-024-0503 | ECM0S120240703CP0 |
SECMDEV0703 |
| 1751-6424 | Continental | ECM-0S12-024-0503 | ECM0S120240703F00 |
SECM0703 W/V2.2 HB |
| 1751-6536 | Continental | ECM-0S12-024-0503 | ECM0S120240801CP0 |
SECMDEV0801 |
| 1751-6426 | Continental | ECM-0S12-024-0503 | ECM0S120240801F00 |
SECM0801 |
| 1751-6535 | Continental | ECM-0S12-024-0503 | ECM0S120240803CP0 |
SECMDEV0803 |
| 1751-6430 | Continental | ECM-0S12-024-0503 | ECM0S120240803F00 |
SECM0803 |
| 1751-6534 | Continental | ECM-0S12-024-0804 | ECM0S120240804CP0 |
SECMDEV0804 |
| 1751-6432 | Continental | ECM-0S12-024-0804 | ECM0S120240804F00 |
SECM0804 |
| 1751-6302 | Visteon | ECM-5554-112-0902-xP | ECM55541120902F00 |
PCM0902 ECM-5554-112-0902 |
| 1751-6435 x | Visteon | ECM-5554-112-0902-xP | ECM55541120902CP0 |
PCM0902 ECM-5554-112-0902 |
| 1751-6454 | Visteon | ECM-5554-112-0904-xD | ECM55541120904F00 |
8M2100904 PCM0904 |
| 1751-6455 | Visteon | ECM-5554-112-0904-xD | ECM55541120904CP0 |
PCMDEV0904 |
| 1751-6649 | Woodward | ECM-5634M-070-061-1402 | SECM70-MI(DEV) |
|
| 1751-6680 | Woodward | ECM-5634M-070-061-1402 | SECM70-MI(PROD) |
|
| 1751-6680 | Woodward | ECM-5634M-070-061-1452 | SECM70-MI(PROD) |
|
| 1751-6650 | Woodward | ECM-5634M-070-061-1403 | SECM70-PG(DEV) |
|
| 1751-6681 | Woodward | ECM-5634M-070-061-1403 | SECM70-PG(PROD) |
|
| 1751-6681 | Woodward | ECM-5634M-070-061-1453 | SECM70-PG(PROD) |
|
| 1751-6653 | Woodward | ECM-5634M-070-061-1409 | SECM70-SK(DEV) |
|
| 1751-6682 | Woodward | ECM-5634M-070-061-1409 | SECM70-SK(PROD) |
|
| 1751-6682 | Woodward | ECM-5634M-070-061-1459 | SECM70-SK(PROD) |
|
| 1751-6675 | Woodward | ECM-5634M-070-061-1411 | SECM70-OH(DEV) |
|
| 1751-6683 | Woodward | ECM-5634M-070-061-1411 | SECM70-OH(PROD) |
|
| 1751-6683 | Woodward | ECM-5634M-070-061-1461 | SECM70-OH(PROD) |
|
| 1751-6605 | Visteon | ECM-5642A-112-049-1200 | ECM-OH |
TBD |
| 1751-6601 | Visteon | ECM-5644A-112-048-1204 | ECM-OH |
VPCWGF-12A650-BA1 |
| 1751-6601 | Visteon | ECM-S12G-112-059-1200 | ECM-OH DV3 Quizzer |
VPCWGF-12A650-AA1 |
| TBD | Visteon | ECM-5642A-112-049-1200 | ECM-OH |
TBD |
| TBD | Woodward Inc. | ECM-5644A-112-064-1400 | ECM-5644A-112-064-1400 |
Mercury ECM112-14 DV |
| 1751-6602 | Visteon | ECM-S12G-112-059-1200 | ECM-OH DV3 Quizzer |
VPCWGF-12A650-AA1 |
| 1751-6603 | Visteon | ECM-S12G-112-059-1200 | ECM-OH DV3 Quizzer |
VPCWGF-12A650-AA1 |
| 1751-6604 | Visteon | ECM-S12G-112-059-1200 | ECM-OH DV3 Quizzer |
VPCWGF-12A650-AA1 |
| 1751-6458 | Continental | ECM-S12X-070-1001 | ECM701001 |
ECM701001 PV PROD |
| 1751-6466 | Continental | ECM-S12X-070-1001 | ECM70D1001 |
ECM70D1001 PV DEV |
| 1751-6503 | Continental | ECM-S12X-070-1001 | Bedrock DPF |
Bedrock DPF 256K |
| 1751-6498 | Continental | ECM-S12X-070-1001 | Bedrock DPF |
Bedrock DPF 1Mb |
| 1751-6544 | Continental | ECM-S12X-070-1001 | Bedrock DPF |
Bedrock DPF W/3 RTD 1Mb |
| 1751-6289 | Continental | GCM-0S12-024-0401-F | CTRLMSIM00100 |
MSIM0401 |
| 1751-6379 | Continental | GCM-0S12-024-0401-F | CTRLSMM00100 |
SMUX0401 |
| 1751-6338 | Continental | GCM-0S12-024-0401-F | GCM0S120240401F00 |
MCHI0401 CTRLCHI00202 |
| 1751-6340 x | Continental | GCM-0S12-024-0401-F | GCM0S120240402F00 |
GCM-0S12-024 MSIM0401 CTRLMSIM00100 |
| 1751-6342 | Continental | GCM-0S12-024-0401-F | GCM0S120240402F30 |
MSIM0401 |
| 1751-6344 | Continental | GCM-0S12-024-0401-F | GCM0S120240402F31 |
MSIM0401 |
| 1751-6346 | Continental | GCM-0S12-024-0401-F | GCM0S120240403F00 |
GCM-0S12-024 CTRLSMM00100 |
| 1751-6348 | Continental | GCM-0S12-024-0401-F | GCM0S120240403F10 |
SMUX CMD STATION |
| 1751-6652 | Woodward | GCM-5634M-070-061-1405 | ATCM70(DEV) |
|
| 1751-6684 | Woodward | GCM-5634M-070-061-1405 | ATCM70(PROD) |
|
| 1751-6684 | Woodward | GCM-5634M-070-061-1455 | ATCM70(PROD) |
| Copyright 2010-2013 Woodward Corporation. All Rights Reserved. | Visit Us: mcs.woodward.com |
